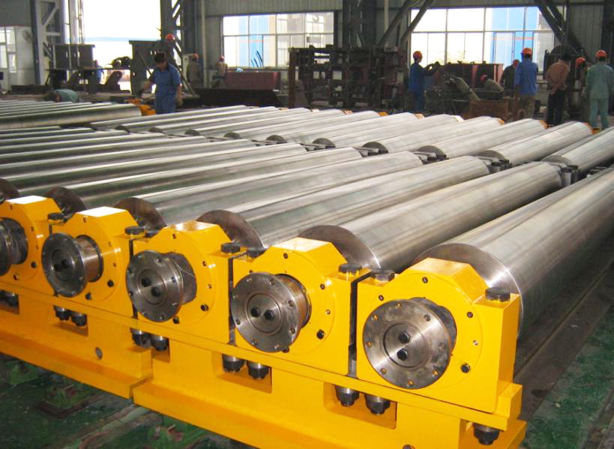

A roller bed (or roller table) in the context of hot rolling refers to a series of rotating rollers that convey hot metal materials through the rolling process. It is an essential part of a hot rolling roller table system, which is designed to carry heated metal billets, slabs, or blooms from one part of the production line to another while maintaining high precision and minimal friction.
The roller table helps maintain the shape of the metal as it passes through different stages of the rolling process, preventing distortion while simultaneously acting as a conveyor system that smoothly transfers materials between the rolling mill’s different sections.
A roller table is a complex system made up of various components that work together to facilitate the smooth and efficient transportation of hot metals. The main components include:
Rotating Rollers: These rollers are responsible for moving the hot metal material across the roller bed. They are designed to rotate at high speeds to minimize friction and prevent damage to the material.
Roller Conveyor System: A roller conveyor is a mechanism that uses rollers to move metal products across the rolling mill. It connects different stages of the production process, ensuring continuous and smooth material movement.
Drive Mechanism: The driving motor is crucial for providing the force needed to rotate the rollers and move the metal. This system includes the motor, gears, and belts.
Support and Bearings: The roller table’s support structures, along with bearings, ensure the rollers move smoothly while maintaining alignment and stability.
Control System: A modern roller table is equipped with sophisticated control systems to monitor and adjust the speed and position of the metal. These systems ensure that materials are fed into the rolling mill at optimal speeds and conditions.
In a hot rolling roller table, the metal is heated in a furnace before entering the rolling process. The rotating rollers then work together to convey the metal from one part of the mill to the next. The roller conveyor plays an essential role in guiding the metal through the roughing and finishing mills, where it is shaped and reduced in thickness.
During the rolling process, the roller bed provides a stable surface for the metal to travel on, ensuring even heating and preventing any warping or bending. The metal is then passed through a series of rollers that progressively reduce its thickness while maintaining its strength and integrity.
The operation of a hot rolling roller table is driven by the need to continuously feed metal billets, blooms, or slabs into the rolling mill. Here's a step-by-step breakdown of how the system works:
Heating the Metal: The metal is first heated to a temperature of approximately 1100-1300°C in a furnace. At this high temperature, the metal becomes malleable and can be shaped into thinner sections.
Movement through the Roller Conveyor: Once the metal reaches the appropriate temperature, it is transferred onto the roller table. The roller conveyor system then guides it to the roughing mill where the initial reduction in thickness begins.
Shaping and Rolling: As the metal passes through the rotating rollers, it is gradually shaped into thinner, longer sections. The roller bed helps maintain uniformity during this process by supporting the material and preventing misalignment.
Finishing and Cooling: After the initial roughing, the material enters the finishing mill where it is further reduced. The roller table moves the material to a cooling bed where it is gradually cooled down, hardening to the final desired properties.
For a roller table to function efficiently, it must meet certain performance metrics:
| Performance Criteria | Required Values |
|---|---|
| Temperature Control | 800-1200°C |
| Roller Speed | 0.5 – 15 meters/second |
| Load Capacity | Up to 500 tons |
| Positional Accuracy | < ±1 mm |
| Surface Temperature Uniformity | < ±5°C |
These performance metrics are vital for maintaining product quality and ensuring the smooth operation of the hot rolling process.
A roller table brings several key benefits to the hot rolling process, including:
Efficiency: The use of rotating rollers in the roller conveyor system allows for smooth material transport with minimal friction, improving throughput.
Precision: The rollers ensure that the metal is aligned correctly and moves steadily through the mill, reducing the chances of defects such as warping or twisting.
Flexibility: Roller tables can accommodate a wide variety of metal shapes and sizes, making them adaptable to different rolling processes.
Energy Efficiency: By reducing friction, the system minimizes energy consumption during the transportation of materials.
To ensure optimal performance, the roller table system requires regular maintenance and attention to specific safety protocols:
Regular Inspection of Rollers: Ensure the rotating rollers are free from wear and tear to prevent malfunction.
Lubrication: Proper lubrication of the bearings and drive components is essential for smooth operation.
Check Alignment and Load Capacity: Regular checks are necessary to ensure that the rollers are properly aligned and can handle the intended load.
Protective Shields: For personnel safety, the system should be equipped with heat shields to protect against hot surfaces.
Emergency Stop Mechanism: An emergency stop system is crucial for halting the system quickly in case of malfunctions.
Safety Barriers: Install barriers or shields to protect workers from moving rollers or high-temperature environments.
The roller table plays a crucial role in the hot rolling process, from the initial heating of the metal to its final shaping and cooling. It acts as a conveyor system that smoothly guides the material through various stages, ensuring consistent product quality. As technologies continue to evolve, future hot rolling roller tables will become even more automated, energy-efficient, and precise, making them an indispensable part of modern steel manufacturing. Understanding the working principle of these systems is essential for optimizing their operation and ensuring high-quality metal production.
