Did you know that inefficient segment selection can reduce production efficiency by up to 30%? Choosing between vertical and horizontal segments is crucial for improving output quality and minimizing costs. In this guide, you'll learn the key differences between these two segments, their functions, benefits, and how to select the right method for your manufacturing needs—ensuring optimal performance and efficiency.
Understanding the distinctions between these two approaches can significantly impact manufacturing outcomes.
A vertical segment refers to systems or processes that operate in an upright orientation, where components or materials move vertically, often under the influence of gravity. In manufacturing, vertical segments are widely used due to their efficient space utilization and natural material flow. By relying on gravity, these systems can reduce energy consumption in material movement. Additionally, vertical alignment ensures precise positioning, which is crucial in processes demanding high accuracy. This makes vertical segments particularly effective in industries where floor space is limited, as they maximize vertical space while maintaining production efficiency.
Common applications:
· Vertical continuous casting — molten metal flows downward for solidification.
· Vertical drilling machines — provide precise alignment in manufacturing tasks.
· Assembly lines — designed to utilize upward space efficiently.

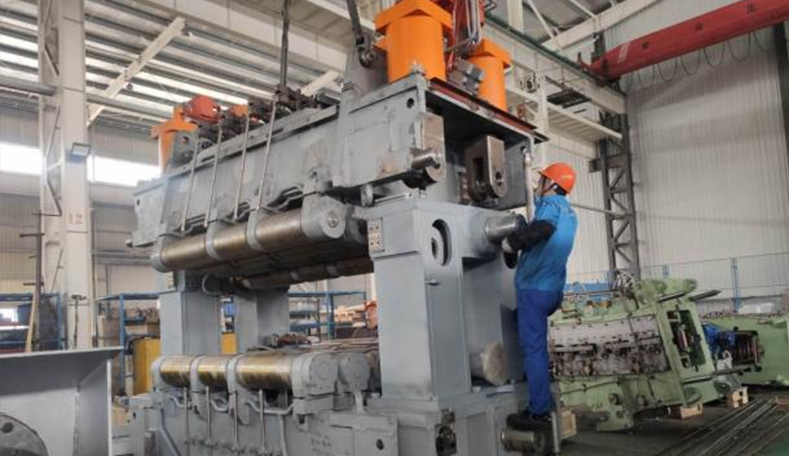

A horizontal segment refers to manufacturing systems that operate parallel to the ground, providing a stable platform for material movement across extended distances. In the continuous casting process, the horizontal segment plays a crucial role by transitioning molten metal or semi-solid material from a vertical orientation to a horizontal path, allowing the material to cool progressively. This gradual cooling process is essential for maintaining the structural integrity of the cast product.
Key functions include:
· Guiding the cast material as it exits the vertical segment, ensuring smooth and controlled movement.
· Preventing bulging caused by static pressure buildup, protecting the cast product’s shape.
· Facilitating cooling through water sprays or air mist systems, ensuring complete solidification.
Common applications:
· Sheet metal processing systems — designed for controlled material movement.
· Horizontal molding lines — ideal for forming uniform parts.
· Conveyor systems — effective for transporting materials efficiently across production floors.
| Feature | Vertical Segment | Horizontal Segment |
|---|---|---|
| Orientation | Upright, relying on gravity | Parallel to the ground |
| Space Requirement | Compact, ideal for limited space | Requires more floor space |
| Material Flow Control | Gravity-aided | Mechanically controlled |
| Cooling Process | Often faster with vertical flow | Extended cooling in horizontal flow |
Vertical segments excel in situations where:
· Space is limited, and upward expansion is possible
· Gravity-driven processes improve efficiency
· Precision is critical for production quality
Horizontal segments are ideal when:
· Products require extended cooling or solidification
· Space constraints are minimal
· Stability and control over material movement are priorities
1. Assess Your Production Space: Identify available floor space and ceiling height.
2. Analyze Material Flow Requirements: Determine if gravity assistance or controlled movement is better suited.
3. Consider Cooling Needs: For materials that need gradual cooling, horizontal segments may be more effective.
4. Review Maintenance Demands: Horizontal segments often allow easier access for cleaning and repairs.
5. Calculate Cost Efficiency: Weigh installation costs versus long-term energy savings.
Challenge: Limited space for horizontal segments
Solution: Use modular designs or combine vertical-to-horizontal transitions.
Challenge: Material bulging in the horizontal segment during cooling
Solution: Incorporate precision rollers and advanced cooling methods to maintain shape stability.
Choosing between vertical and horizontal segments directly affects efficiency, space utilization, and product quality. By understanding their differences — and applying best practices — you can enhance your manufacturing outcomes.
Ready to optimize your production process? Contact us today for tailored solutions that improve your efficiency.
Consider your space constraints, material flow needs, and cooling requirements. Vertical segments save space, while horizontal segments excel in controlled cooling.
For steel production, combining a vertical start with a horizontal segment for cooling remains the most efficient approach.
Costs vary depending on system complexity, but investing in efficient segment transitions often yields long-term savings in maintenance and energy consumption.
